Solving Silk Screen Printing Challenges: Air Gun Pre-Treatment for Clearer Patterns on Ceramic Mugs

The Challenge: Small Design Elements on Silk Screen Printed Mugs

In the world of custom ceramic mug manufacturing, silk screen printing directly onto the clay body (greenware) before glazing is a highly specialized technique. It requires precision, experience, and meticulous process control. Recently, we encountered a challenging order that tested our team's expertise and pushed us to innovate.

The customer's design featured intricate patterns and small text elements that needed to be silk screen printed directly onto the unfired clay surface, followed by a glaze application and high-temperature firing. This under-glaze silk screen printing process is known for producing durable, long-lasting designs that become part of the mug itself, rather than sitting on top of the glaze.

However, the combination of very small text and detailed patterns presented a significant technical hurdle. When the design elements are too small, the glaze application process can cause the printed patterns to blur, shift, or become incomplete. This is a well-known challenge in the ceramic industry, and our team was determined to find a solution that would meet the customer's exacting standards.

Our Team's Investigation and Root Cause Analysis

As a professional custom ceramic mug manufacturer, we take quality control seriously. When the first batch of test samples showed incomplete patterns and unclear text after firing, our production team immediately stopped the line to conduct a thorough root cause analysis.

After careful examination, we identified the core issue: during the silk screen printing process on the greenware surface, tiny particles of dust, clay debris, and residual printing material were settling on the printed areas. When the glaze was applied over these particles, they created microscopic barriers between the glaze and the printed pattern. During the high-temperature firing process, these barriers caused the glaze to interact unevenly with the printed design, resulting in incomplete patterns and unclear text.

The problem was particularly pronounced in areas with small text and fine details. The smaller the design element, the more visible the defect became after firing. Our quality team documented the issue thoroughly and began exploring solutions.

The Solution: Air Gun Pre-Treatment Before Glazing

After extensive research and testing, our engineering team developed an innovative solution: a pre-treatment process using a high-pressure air gun to thoroughly clean the printed surface before glaze application.

The process works as follows:

• Step 1: Silk screen printing is applied to the greenware (unfired clay body) as usual
• Step 2: The printed mugs are allowed to dry for a controlled period

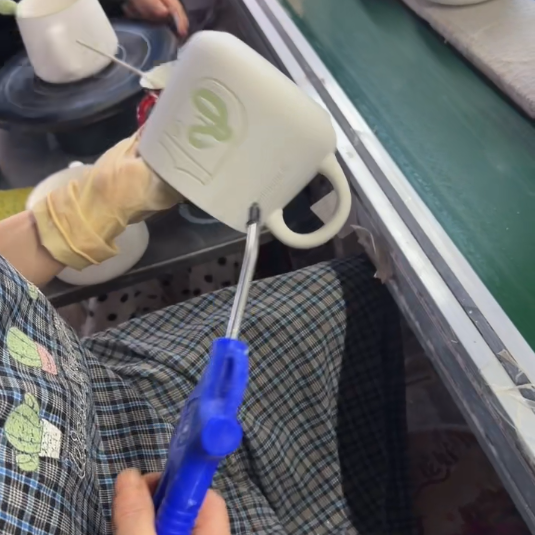

• Step 3: A precision air gun is used to blow compressed air across the entire printed surface, removing all microscopic dust particles, loose clay debris, and any residual printing material
• Step 4: Visual inspection under bright lighting to confirm the surface is completely clean
• Step 5: Glaze application proceeds on the perfectly cleaned surface
• Step 6: Final high-temperature firing

This simple yet effective solution ensures that the printed pattern and text are completely clear and free from any impurities around the edges. The air gun treatment removes all contaminants without disturbing the printed design, creating a perfectly clean surface for the glaze to bond with.

Exceptional Results: Improved Yield Rate and Print Clarity

The results of implementing the air gun pre-treatment process exceeded our expectations. The improvement in print quality was immediately visible:

• Complete pattern clarity: Every detail of the customer's design, including the smallest text, was crisp and fully formed after firing
• No edge impurities: The printed areas were clean with no residual particles or contamination around the edges
• Uniform glaze coverage: The glaze applied smoothly and evenly over the printed surface
• Significantly improved yield rate: The percentage of first-quality finished products increased dramatically, reducing waste and production costs

This process improvement represents a significant advancement in our under-glaze ceramic printing solution capabilities. The customer was extremely satisfied with the final results, and we have since incorporated this air gun pre-treatment step into our standard operating procedure for all silk screen printing orders.

Why This Matters for Your Custom Mug Orders

For businesses looking for a reliable OEM ceramic mug factory, this case study demonstrates our commitment to continuous improvement and problem-solving. When you choose Storiware as your manufacturing partner, you benefit from:

• Technical expertise: Our team has years of experience solving complex ceramic manufacturing challenges
• Process innovation: We continuously refine our production methods to improve quality and yield
• Quality assurance: Every order undergoes rigorous inspection at multiple stages of production
• Customer-focused approach: We invest time and resources to meet each customer's specific requirements

Whether you need bulk ceramic mug orders with silk screen printing, sublimation, or any other decoration method, our team has the expertise to deliver exceptional results.
